Attributes: | |
Material: | Cast Steel |
Nominal Size: | 315*250mm to 1000*800mm |
Installation site: | on the bulwark |
Surface: | Hot Dip Galvanizing,Powder coated |
Weight: | 198KG to 1580KG |
Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

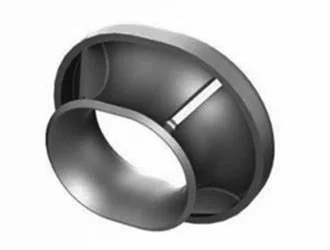

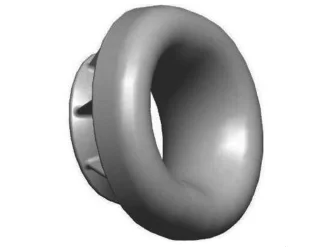

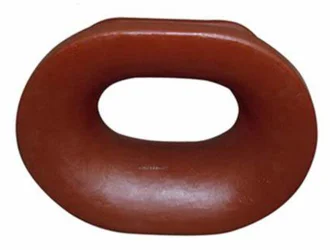

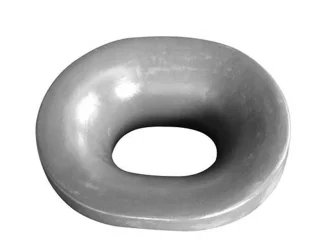

Bulwark Chock (EU Type) Towing Chock
The bulwark towing chock also known as EU type towing chock is installed on the bulwark. The bulwark towing chock is the towing fittings applied for the towing purpose by towing lines.
It is made of cast steel, generally by ZG230-450 in Chinese standard. Both the material and types of marine chocks can be customized according to your requirements and design. The design mostly has high SWL.
The surface of the towing chock is fine polished by a 2-layer of shop primer anti-rust painting after sandblasting 2.5 and well painted without any bur and the edge is to protect the towing ropes from broken during work. It is similar to NS 2589 chock, not often used in Asian ships.
Sinostar Marines design and manufacture the bulwark towing chock with the certificate of DNV-GL, BV, LRS, ABS, RINA, etc, best price guaranteed.
Material: Cast steel
Weight: 198kg to 1580kg
Finishing: the mooring chocks shall be coated externally with an anti-corrosion protective finish.
Installation site: on the bulwark

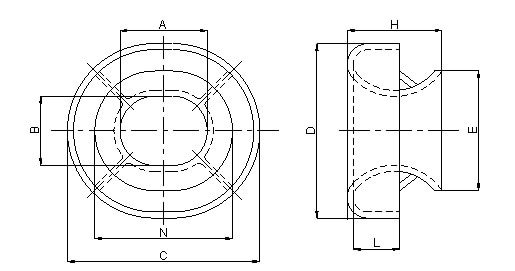

EU Type Towing Chock | |||||||||
Nominal size | Weight | Dimensions(mm) | |||||||
(mm) | (kg) | A | B | C | D | E | H | L | N |
315*250 | 198 | 315 | 250 | 695 | 630 | 432 | 342 | 168 | 497 |
425*280 | 358 | 425 | 280 | 925 | 780 | 516 | 450 | 224 | 661 |
600*315 | 547 | 600 | 315 | 1160 | 876 | 571 | 504 | 250 | 866 |
600*450 | 850 | 600 | 450 | 1160 | 1010 | 706 | 504 | 260 | 856 |
800*600 | 1200 | 800 | 600 | 1500 | 1300 | 860 | 580 | 290 | 1060 |
1000*800 | 1580 | 1000 | 800 | 1760 | 1560 | 1250 | 700 | 350 | 1450 |
