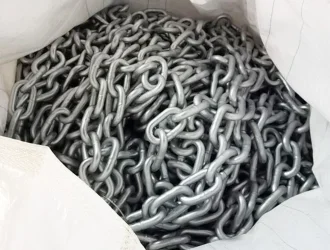

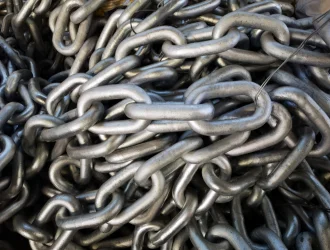

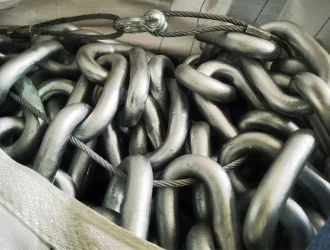

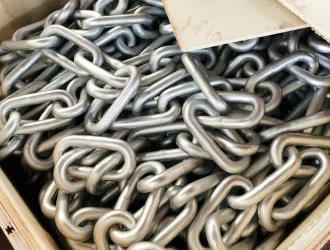

Hot-dip galvanized Studless Fishing Chain Aquaculture
| Product Features: | |
| Application: | Aquaculture, Fish farm mooring |
| Material: | Carbon steel CM490/ CM690 |
| Specification: | ø20mm-ø50mm |
| Surface treatment: | Hot dipped galvanized |
| Certificate: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

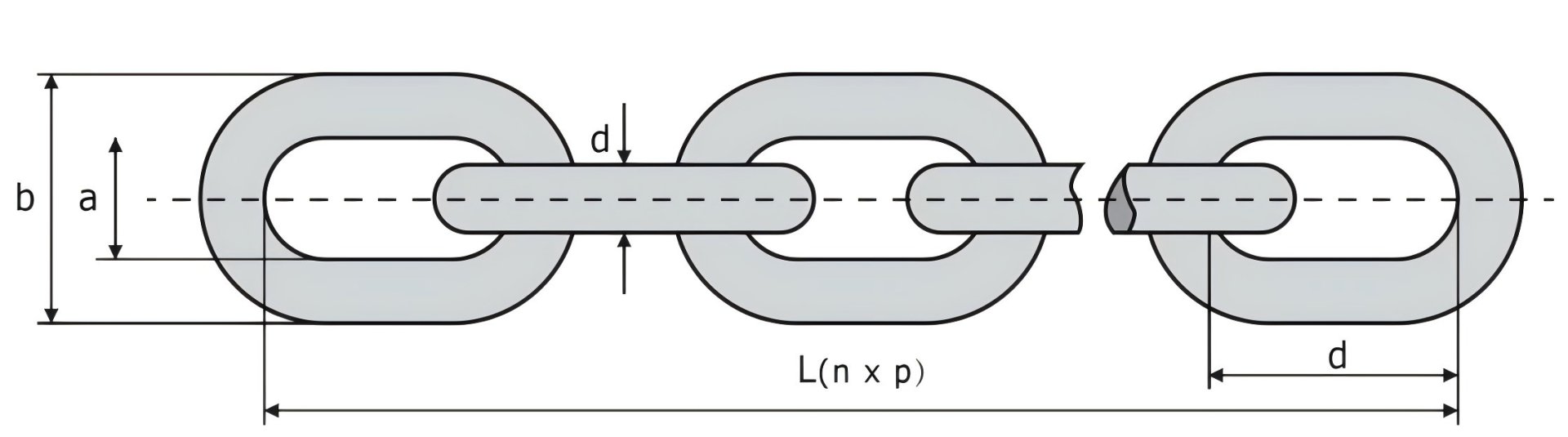

Description
| Nominal | BM2 | BM3 | Weight（kg/m) | ||
| Dia(mm) | MBL | PL | MBL | PL | - |
| 20.5 | 217.27 | 108.64 | 303.42 | 151.7 | 9.12 |
| 22 | 250.9 | 125.4 | 349.4 | 174.7 | 10.5 |
| 24 | 298.9 | 149.9 | 415.8 | 207.9 | 12.5 |
| 26 | 350.8 | 175.4 | 488 | 244 | 14.67 |
| 28 | 406.7 | 203.8 | 566 | 283 | 17 |
| 30 | 467.5 | 234.2 | 649.8 | 324.9 | 19.5 |
| 32 | 531.2 | 265.6 | 739.3 | 369.6 | 22.22 |
| 34 | 599.8 | 299.9 | 834.6 | 417.3 | 25.08 |
| 36 | 672.3 | 336.1 | 935.7 | 467.8 | 28.12 |
| 38 | 748.7 | 374.4 | 1042.6 | 521.3 | 31.33 |
| 40 | 829.1 | 414.5 | 1156.2 | 577.6 | 34.72 |
| 42 | 915.3 | 457.7 | 1273.6 | 636.8 | 38.28 |
| 44 | 999.6 | 502.7 | 1397.8 | 698.9 | 42.01 |
| 46 | 1097.6 | 548.8 | 1527.8 | 763.9 | 45.92 |
| 48 | 1195.6 | 597.8 | 1663.5 | 831.7 | 50 |
| 50 | 1293.6 | 648.8 | 1805 | 902.5 | 54.25 |
