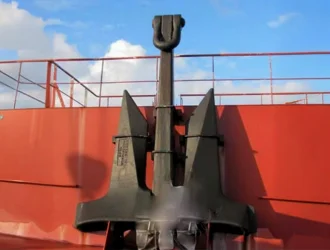

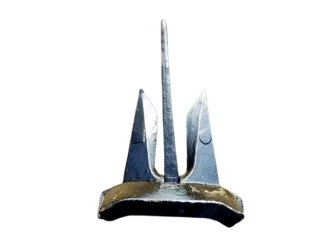

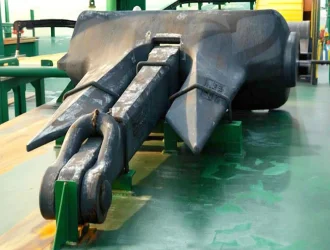

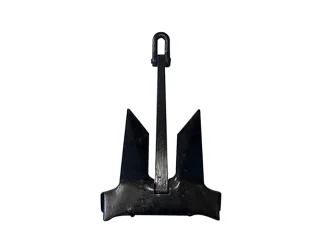

AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
Application:Lifting accessory commonly used in industrial and construction settings.
Product Features: | |
Application: | Ship anchorage, Ship docking |
Material: | Alloy steel,Casting |
Specification: | 300kgs to 10000kgs |
Surface: | Hot dipped galvanizing |
Standard: | European standard/USA ASTM 80 |
Certificate: | LR, ABS, BV, DNV, CCS, KR, NK, RMRS,etc |

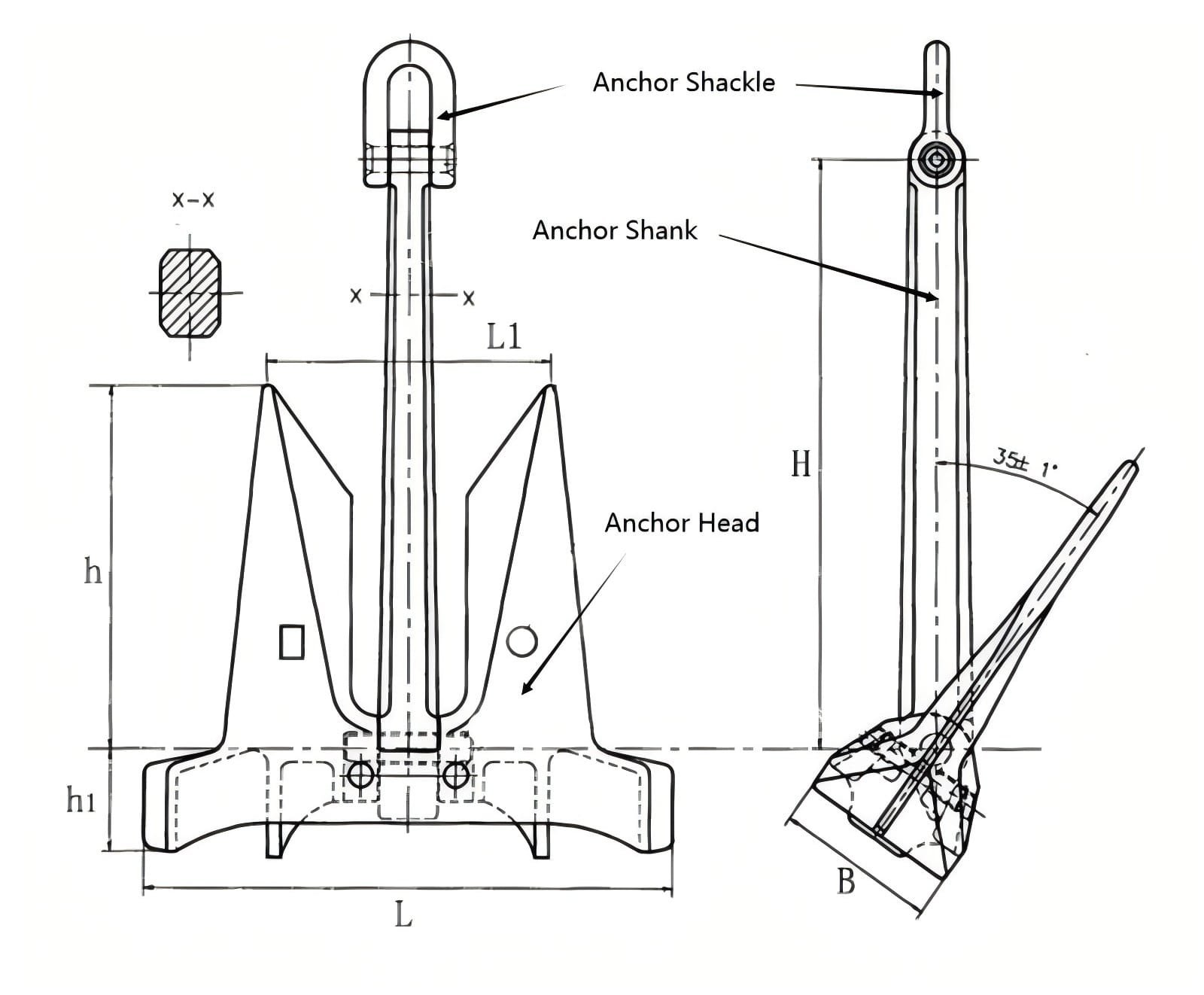

Norminal | Size(mm) | ||
Weight(kg) | H | L1 | h |
300 | 1075 | 524 | 660 |
675 | 1410 | 690 | 868 |
750 | 1450 | 700 | 878 |
1080 | 1650 | 805 | 1014 |
1305 | 1760 | 858 | 1082 |
1710 | 1925 | 940 | 1184 |
1845 | 1975 | 965 | 1215 |
2835 | 2265 | 1105 | 1393 |
3550 | 2455 | 1198 | 1508 |
4500 | 2655 | 1295 | 1632 |
5610 | 2858 | 1396 | 1758 |
6900 | 3062 | 1496 | 1884 |
7800 | 3190 | 1558 | 1962 |
8300 | 3256 | 1590 | 2002 |
9900 | 3452 | 1686 | 2124 |
10575 | 3523 | 1720 | 2166 |
12900 | 3772 | 1842 | 2320 |
14100 | 3885 | 1896 | 2389 |
16900 | 4128 | 2016 | 2538 |
18800 | 4277 | 2088 | 2630 |
20000 | 4350 | 2101 | 2694 |
25000 | 5046 | 2437 | 3125 |
30000 | 5162 | 2558 | 3218 |
35000 | 5434 | 2693 | 3388 |
40000 | 5678 | 2814 | 3540 |
45000 | 5905 | 2926 | 3681 |
50000 | 6117 | 3031 | 3813 |
55000 | 6313 | 3128 | 3936 |
60000 | 6504 | 3223 | 4055 |
65000 | 6680 | 3310 | 4164 |
70000 | 6845 | 3392 | 4267 |
75000 | 7005 | 3471 | 4367 |
80000 | 7155 | 3545 | 4460 |
85000 | 7304 | 3620 | 4553 |
90000 | 7444 | 3688 | 4640 |
95000 | 7578 | 3755 | 4724 |
100000 | 7707 | 3819 | 4804 |
