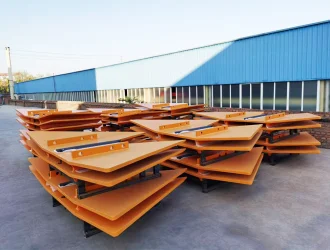

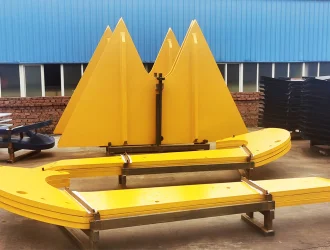

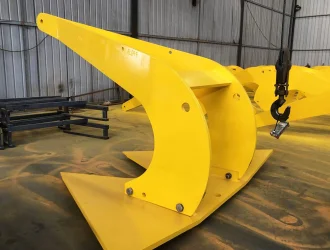

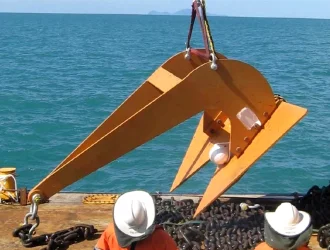

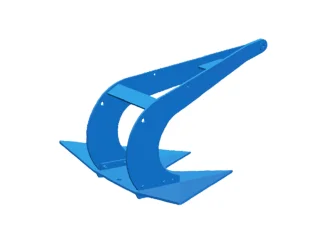

Dual Shank Anchor For Aquaculture Mooring
| Product Features: | |
| Material: | Carbon steel Q355 |
| Holding power: | 40 times the self weight |
| Specification: | 50kgs-2500kgs |
| Package advice: | Flat pack, Assembly on site. |
| Surface: | Self- colored, black tar, hot dip galvanized |
Description
| Weight | MBL attachment | Holding power | A | B | C | B 1 | D | E |
| Weight kg | Tons | Tons | mm | mm | mm | mm | mm | mm |
| 750 | 96 | 32 | 2200 | 2200 | 698 | 2030 | 1373 | 784 |
| 1000 | 120 | 40 | 2480 | 2400 | 713 | 2195 | 1473 | 845 |
| 1500 | 168 | 56 | 2828 | 2891 | 981 | 2696 | 1786 | 1004 |
| 2000 | 207 | 69 | 3034 | 3102 | 1048 | 2888 | 1914 | 1083 |
| 2500 | 258 | 87.5 | 3157 | 3228 | 1093 | 3007 | 1994 | 1127 |
