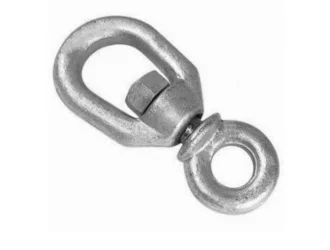

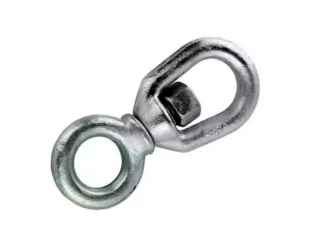

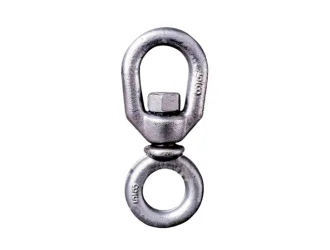

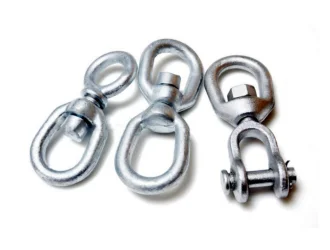

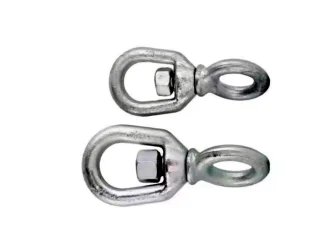

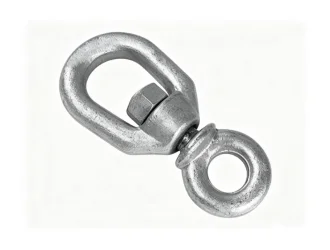

G401 Chian Swivel Ring Forged US Type
| Product Features: | |
| Application: | It is used for lifting devices to ensure the safety of hoisting. |
| Material: | Forged Alloy Steel |
| Specification: | 1/4”-3/4" |
| Surface: | Hot Dip Galvanizing |
| Packing: | Bulk, Ton Bag or as Customer Request，Pallet |
| Standard: | DIN5688-A343，ISO9001 |
Description

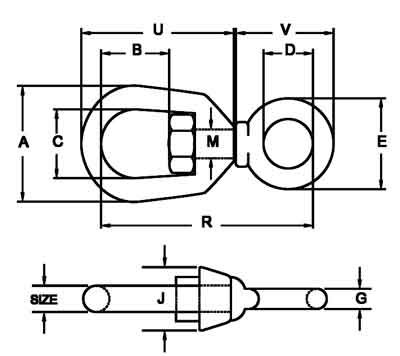

| Nominal | Working Load Limit | Weight | Dimensions(in) | ||||||||||
| (in) | (Ton) | (kg) | A | B | C | D | E | G | J | M | R | U | V |
| 1/4 | 0.85 | 0.13 | 1.25 | 0.69 | 0.75 | 0.62 | 1.12 | 0.25 | 0.69 | 0.31 | 2.25 | 1.69 | 1.25 |
| 5/16 | 1.25 | 0.25 | 1.63 | 0.81 | 1.00 | 0.75 | 1.38 | 0.31 | 0.81 | 0.38 | 2.72 | 2.06 | 1.47 |
| 3/8 | 2.25 | 0.54 | 2.00 | 0.94 | 1.25 | 1.00 | 1.75 | 0.38 | 1.00 | 0.50 | 3.44 | 2.50 | 1.88 |
| 1/2 | 3.6 | 1.12 | 2.50 | 1.31 | 1.50 | 1.25 | 2.25 | 0.50 | 1.31 | 0.63 | 4.25 | 3.19 | 2.44 |
| 5/8 | 5.2 | 2.09 | 3.00 | 1.56 | 1.75 | 1.50 | 2.75 | 0.62 | 1.50 | 0.75 | 5.13 | 3.88 | 2.94 |
| 3/4 | 7.2 | 3.09 | 3.50 | 1.75 | 2.00 | 1.75 | 3.25 | 0.75 | 1.88 | 0.88 | 5.78 | 4.94 | 3.46 |
