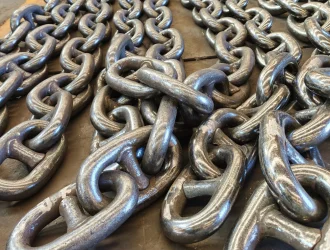

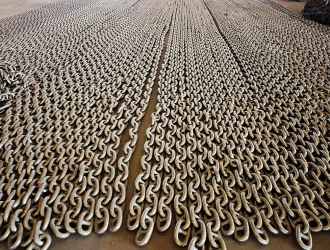

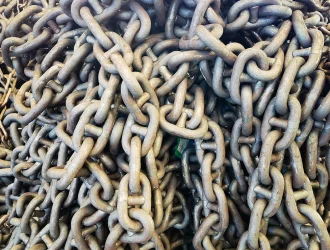

Stud Link Anchor Chain Aquaculture Fish Chain
| Product Features: | |
| Material: | Carbon Steel CM490/ CM690 |
| Specification: | ø20mm-ø50mm |
| Certificate: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |
| Packing: | Ton bags, Wooden boxes, Iron cages, Iron drums |
| Surface: | Self- colored, Black tar, Hot dip galvanized |
Description
| Nominal specification, breaking load, tension load and unit weight Unit KN | |||||
| Nominal | AM2 | AM3 | Stud link chain weight | ||
| Dia/mm | MBL | PL | MBL | PL | （kg/m) |
| 20.5 | 244 | 175 | 349 | 244 | 9.2 |
| 22 | 280 | 200 | 401 | 280 | 10.6 |
| 24 | 332 | 237 | 476 | 332 | 12.61 |
| 26 | 389 | 278 | 556 | 389 | 14.8 |
| 28 | 449 | 321 | 642 | 449 | 17.17 |
| 30 | 514 | 368 | 735 | 514 | 19.71 |
| 32 | 583 | 417 | 833 | 583 | 22.43 |
| 34 | 655 | 468 | 937 | 655 | 25.32 |
| 36 | 732 | 523 | 1050 | 732 | 28.38 |
| 38 | 812 | 581 | 1160 | 812 | 31.62 |
| 40 | 895 | 640 | 1280 | 895 | 35.04 |
| 42 | 981 | 703 | 1400 | 981 | 38.63 |
| 44 | 1080 | 769 | 1540 | 1080 | 42.4 |
| 46 | 1170 | 837 | 1680 | 1170 | 46.34 |
| 48 | 1270 | 908 | 1810 | 1270 | 50.46 |
| 50 | 1370 | 981 | 1960 | 1370 | 54.75 |
