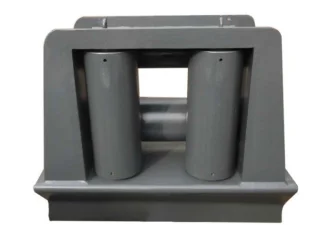

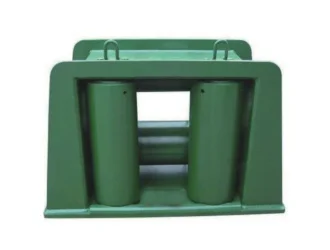

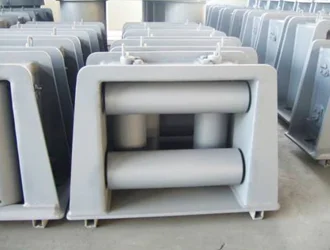

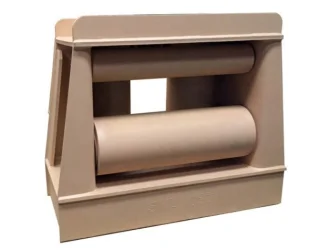

The JIS F2026-80 Four-Roller Fairlead Type A is a high-performance marine component designed to guide mooring lines.

The swivel head fairlead is the heavy-duty balanced anchor fairlead and is installed on the deck of ships. It is suitable for use in most deck-mounted or flange-mounted marine-duty applications, which can be manufactured with welded foundation or bolted foundation.

Sinostar Marine is a professional marine equipment supplier. All of our swivel fairleads can be custom-designed and approved by CCS, ABS, DNV, GL, BV, RINA, NK, etc.

NS2585 warping roller is the same as the GB/T 10105-88 fairlead. It is cast by the finest quality marine mild carbon steel for added durability. All surfaces in contact with the ropes shall be free from surface roughness or irregularities likely to cause damage to the ropes by abrasion. It has a high breaking load of a tightwire. The compact design, precision machined smooth surface and easily removable shafts ensure the good wear and corrosion resistance of the fairlead.

The foundation of the warping roller shall be determined by the manufacturer in accordance with the standard of ISO13755. The roller fairlead is made from steel casting having a yield point of not less than 205N/mm2 or steel plates having a yield point of not less than 235 N/mm2 and the Axl is made from weldable steel casting having a yield point of not less than 350N/mm2 or equivalent.

The shipside roller is made in accordance with the standard of ISO 13767. The safe working load (SWL) intended for the use of the roller fairlead shall be noted in the towing and mooring plan available onboard for the guidance of the shipmaster as specific.

DIN81902 Roller Fairlead is a common marine mooring and towing equipment. It is made of 4 rollers and is divided into 2 vertical rollers and 2 horizontal rollers.

Material:Cast steel and copper bush

The chain stopper is an important mooring device to ensure the safety of the ship. The chain stopper is mainly used to carry the gravity and tension of the anchor and the anchor chain, and it can protect the unworking windlass. The chain stopper can be selected according to the chain diameter and the test load of the anchor chain.

Swivel Head Anchor Fairlead, also know as balanced head swivel fairleads, a weld down or bolt down base are designed for option.

Sinostar Marine is a professional marine equipment supplier. All of our swivel fairleads can be custom-designed and approved by CCS, ABS, DNV, GL, BV, RINA, NK, etc.

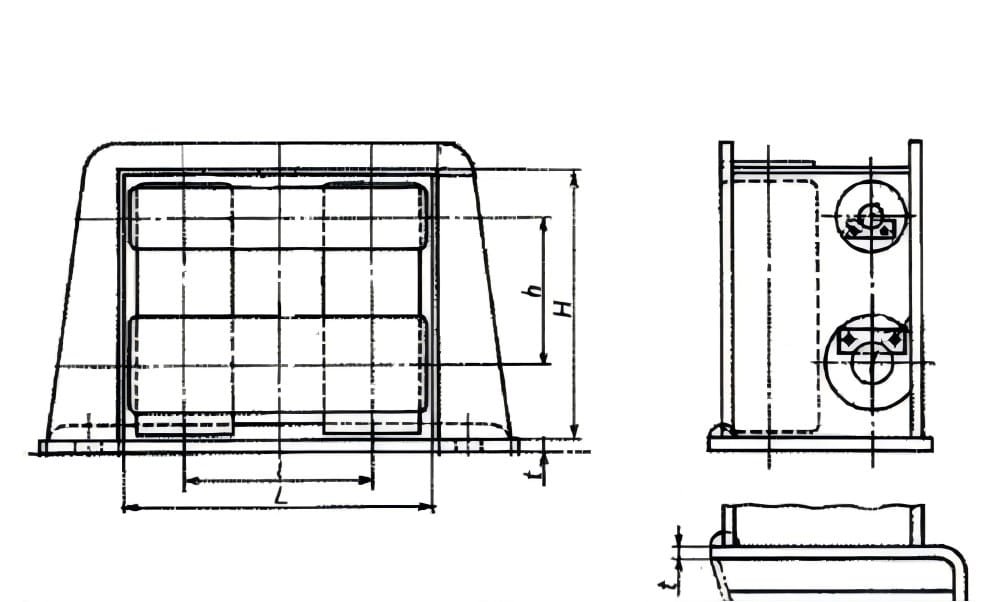

The roller fairlead is manufactured strictly according to the Japanese Standard JIS F 2026-1980. It is also known as universal fairlead with horizontal rollers and vertical rollers.

Single Roller Fairlead with Socket is a heavy-duty piece of equipment designed for the harsh environment of boats and ships. It functions similarly to its land-based counterpart, guiding and supporting ropes, lines, and cables while they’re under tension.

Single Roller Fairlead with Socket is a heavy-duty piece of equipment designed for the harsh environment of boats and ships. It functions similarly to its land-based counterpart, guiding and supporting ropes, lines, and cables while they’re under tension.
