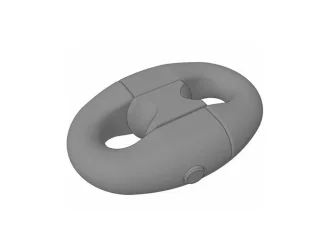

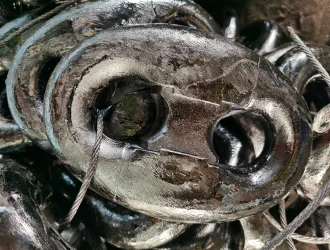

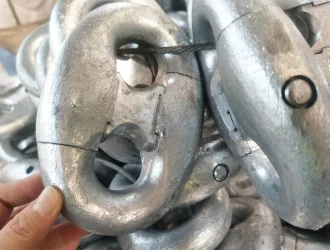

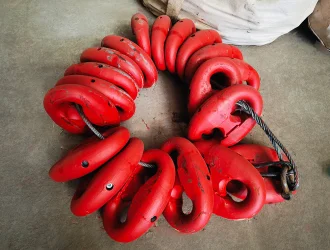

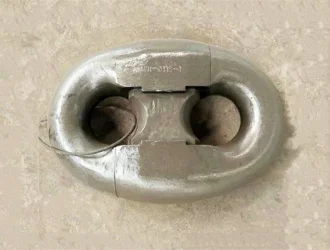

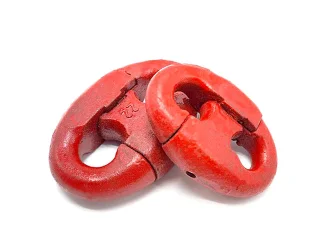

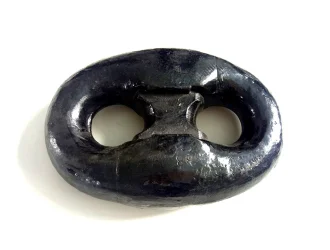

Marine Kenter Link Shackle Anchor Chain for Ship
| Product Features: | |
| Application: | Joint shackle used to connect chain links |
| Material: | Alloy steel |
| Diameters: | 20.5mm to 122mm |
| Surface: | Hot dip galvanizing |
| Certification: | LR, ABS, BV, DNV, CCS, KR, NK, RMRS,etc |

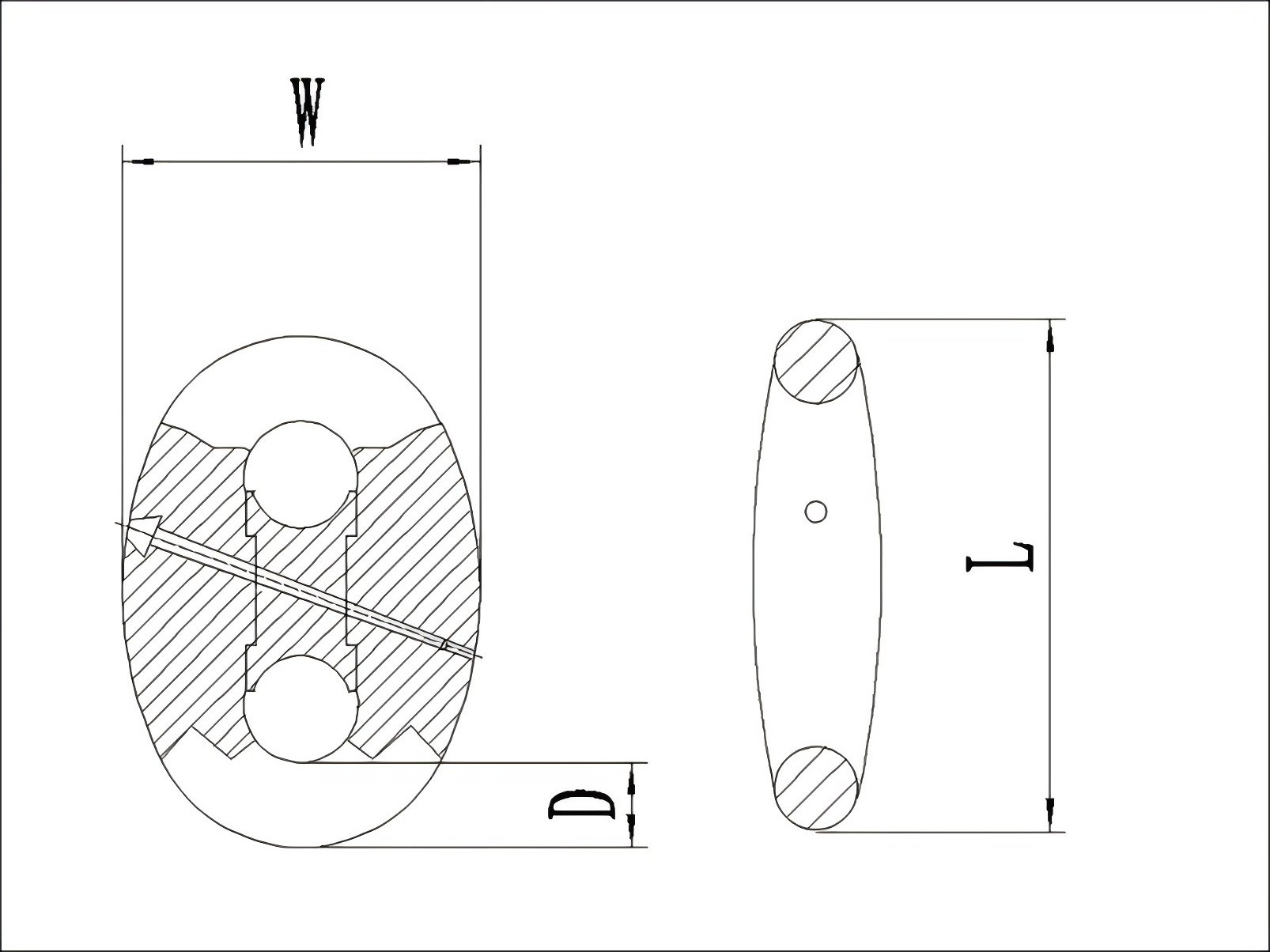

Description
| Nominal | M2 (KN) | M3 (KN) | Weight | ||
| (mm) | BL | PL | BL | PL | （kg) |
| 20.5 | 244 | 175 | 349 | 244 | 1.36 |
| 22 | 280 | 200 | 401 | 280 | 1.64 |
| 26 | 389 | 278 | 556 | 389 | 2.58 |
| 28 | 449 | 321 | 642 | 449 | 3.3 |
| 30 | 514 | 368 | 735 | 514 | 4.15 |
| 32 | 583 | 417 | 833 | 583 | 5.06 |
| 36 | 732 | 523 | 1050 | 732 | 6.89 |
| 38 | 812 | 581 | 1160 | 812 | 8.4 |
| 40 | 895 | 640 | 1280 | 895 | 9.63 |
| 42 | 981 | 703 | 1400 | 981 | 11 |
| 46 | 1170 | 837 | 1680 | 1170 | 14.1 |
| 48 | 1270 | 908 | 1810 | 1270 | 16.7 |
| 50 | 1370 | 981 | 1960 | 1370 | 19 |
| 52 | 1480 | 1060 | 2110 | 1480 | 20.3 |
| 56 | 1710 | 1220 | 2430 | 1710 | 26.7 |
| 58 | 1810 | 1290 | 2600 | 1810 | 27.2 |
| 60 | 1940 | 1380 | 2770 | 1940 | 27.7 |
| 62 | 2060 | 1470 | 2940 | 2060 | 35 |
| 66 | 2310 | 1660 | 3300 | 2310 | 42.3 |
| 68 | 1450 | 1750 | 3500 | 2450 | 46 |
| 70 | 2580 | 1840 | 3690 | 2580 | 48.7 |
| 76 | 3010 | 2150 | 4300 | 3010 | 60.7 |
| 78 | 3160 | 2260 | 4500 | 3160 | 65.5 |
| 81 | 3380 | 2410 | 4820 | 3380 | 75 |
| 87 | 3850 | 2750 | 5500 | 3850 | 96 |
| 90 | 4090 | 2920 | 5840 | 4090 | 108 |
| 92 | 4260 | 3040 | 6080 | 4260 | 114 |
| 97 | 4680 | 3340 | 6690 | 4680 | 133 |
| 100 | 4940 | 3530 | 7060 | 4940 | 146 |
| 102 | 5120 | 3660 | 7320 | 5120 | 158 |
| 107 | 5570 | 3980 | 7960 | 5570 | 180 |
| 111 | 5940 | 4250 | 8480 | 5940 | 198 |
| 114 | 6230 | 4440 | 8890 | 6230 | 204 |
| 120 | 6810 | 4850 | 9720 | 6810 | 250 |
| 122 | 7000 | 5000 | 9990 | 7000 | 263 |
| 127 | 7490 | 5350 | 10710 | 7490 | 312 |
| 130 | 7800 | 5570 | 11140 | 7800 | 333 |
| 132 | 8000 | 5720 | 11420 | 8000 | 350 |
