Marine Mooring Sinker Ballast Counterweight
| Product Features: | |
| Application: | Mooring system, Offshore platform |
| Material: | Cast Iron |
| Weight/Dimension: | As required |

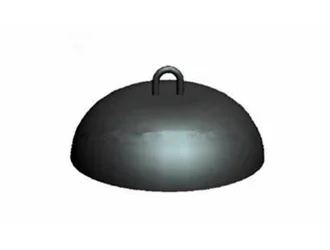

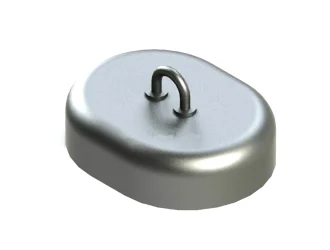

| Shape: | Oval/Dome/Round/Square/Polygonal or as required |
| Surface: | Polished/Blackened/Galvanized/Painted |
Description

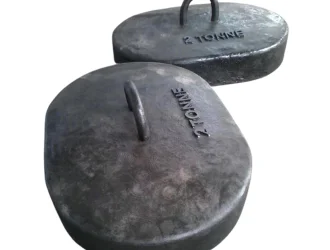

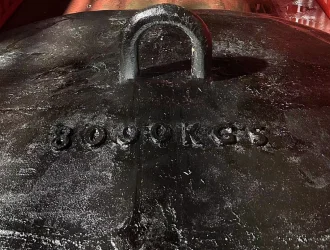

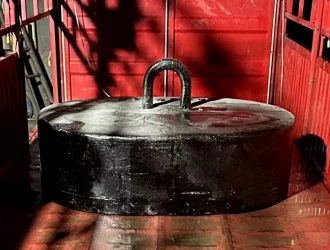

Cast Iron Mooring Sinker

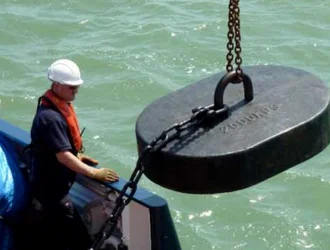

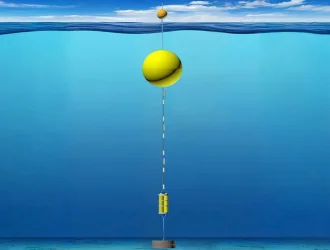

Cast iron mooring sinkers are used for offshore platform mooring systems such as mooring buoys or navigation marks, working as balance weight.
Product Description
1. Type: mooring sinker
2. Material: cast iron
3. Shape: oval/customed
4. Size/Weight: customed
5. Certificate: CCS, NK etc.
6. Application: mooring system
7. Surface Treatment: polished/blackened/galvanized/hot-dipped galvanized/painted
Product Range
Sinostar Marine has rich experience in selling and exporting all kinds of marine equipment, mechanical parts and casting parts.
Mooring Equipment: Anchor, Anchor Chains, Bollard, Chocks,Fairlead, Towing Hook, Release Hook etc.
Offshore Equipment: Mooring Chains, Mooring Buoys etc.
Deck Fitting: Marine Bollard,Marine Chock,Roller fairlead, Marine Mooring etc.
Marine Hardware: Liftings and Riggings, Container Fittings, Pipe and Pipe Fittings, Flange, Steel Wire and Rope and Industrical Chains etc.
| Mass(Ton.) | Domensions(mm) | |||||
| - | L | B | H | B1 | h | d |
| 1 | 1000 | 800 | 220 | 170 | 140 | 35 |
| 2 | 1400 | 1000 | 280 | 170 | 181 | 64 |
| 3 | 1600 | 1160 | 290 | 170 | 181 | 64 |
| 4 | 1780 | 1360 | 290 | 170 | 190 | 70 |
| 5 | 2000 | 1400 | 310 | 170 | 190 | 70 |
| 6 | 2160 | 1500 | 320 | 170 | 220 | 80 |
| 10 | 2580 | 1920 | 360 | 170 | 280 | 102 |
| 15 | 3740 | 1957 | 560 | 626 | 352 | 120 |
