Application:Mooring,Marine,Ship
Application:Mooring,Marine,Ship
Application: Aquaculture, Fish farm mooring
AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
Application:Lifting accessory commonly used in industrial and construction settings.
Product Features: | |
Application: | Used to secure heavy loads during transportation |
Material: | Alloy steel,Carbon steel |
Specification: | 8mm-16mm |
Surface: | Hot dip galvanizing,Powder coated |
Color: | Colorful paint |
Standard: | EN 12195-3,ISO9001 |

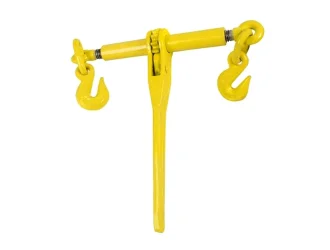

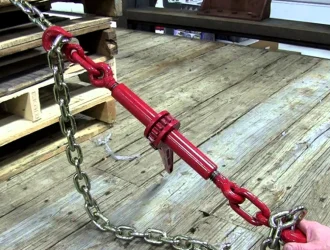

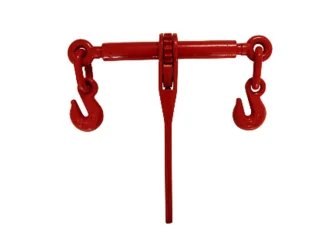

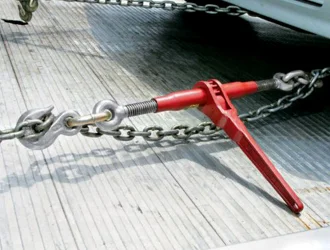

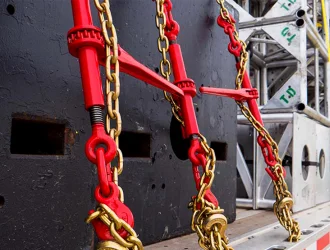

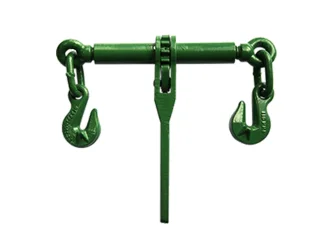

WHAT ARE RATCHET LOAD BINDERS ?
Ratchet Binders use ratcheting mechanism to create tension in the chain in order to safely secure the load.
They have a handle, two tension hooks, a cam and prawl mechanism to create a smooth, ratcheting action.
Its handle takes much less pulling force compared to Lever Load Binders.
When you using the lever and screw will work together to increase the force applied to the tie-down assembly.
As a result, this will tension the chain tightly to secure the load.
Code | Min-Max chain size | Working load limit | Proof load limit | Minimum ult mate | Weight each | Handle length | Barrel length | Take up | Dimensions (in) | |||||||
NO. | (in) | (lbs) | (Ibs) | Strength(Ibs) | (Ibs) | (in) | (in) | (in) | A | B | C | E | E1 | F | F1 | G |
WRB01 | 1/4”-5/16” | 2600 | 4400 | 9200 | 3.68 | 8.27 | 6.3 | 4.65 | 7.16 | 0.89 | 1.77 | 17.4 | 22.04 | 19.2 | 23.84 | 0.54 |
WRB02 | 5/16“-3/8” | 5400 | 10800 | 19000 | 10.5 | 13.42 | 9.92 | 8 | 13.32 | 1.3 | 2.6 | 23.78 | 31.78 | 25.14 | 34.14 | 0.47 |
WRB03 | 3/8”-1/2” | 9200 | 18400 | 33000 | 12.2 | 13.92 | 9.92 | 8 | 13.92 | 1.3 | 2.6 | 23.82 | 31.82 | 28.93 | 34.93 | 0.63 |
WRB04 | 1/2"-5/8” | 13000 | 26000 | 46000 | 14.38 | 13.92 | 9.92 | 8 | 13.92 | 1.3 | 2.6 | 25.9 | 25.9 | 29.57 | 34.57 | 0.72 |
WRB05 | 5/16-3/8” | 6600 | 13200 | 26000 | 11 | 13.42 | 9.92 | 8 | 13.92 | 1.3 | 2.6 | 23.78 | 23.78 | 26.14 | 34.14 | 0.47 |
WRB06 | 3/8-1/2” | 12000 | 24000 | 36000 | 13.8 | 13.42 | 9.92 | 8.2 | 13.92 | 1.3 | 2.6 | 23.78 | 23.78 | 26.14 | 34.14 | 0.47 |
