Application:Mooring,Marine,Ship
Application:Mooring,Marine,Ship
Application: Aquaculture, Fish farm mooring

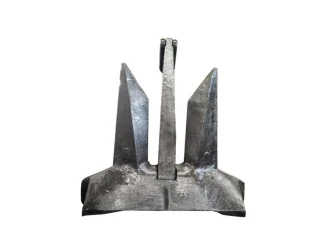

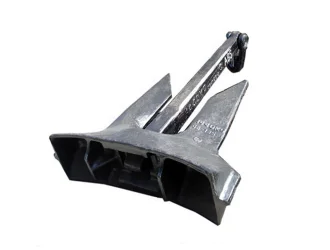

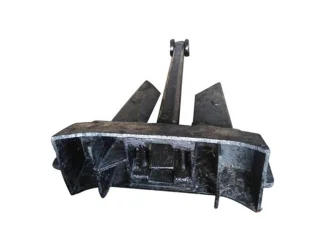

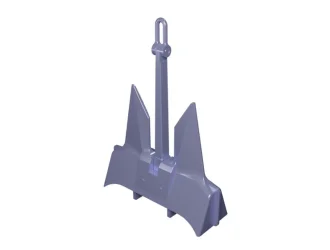

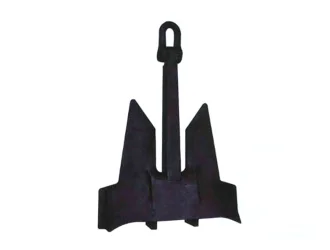

AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
Application:Lifting accessory commonly used in industrial and construction settings.
Product Features: | |
Application: | Ship anchorage,Ship docking |
Material: | Alloy steel,Casting |
Specification: | 300kgs to 10000kgs |
Surface: | Hot dip galvanizing |
Standard: | European standard/USA ASTM 80 |
Certificate: | LR, ABS, BV, DNV, CCS, KR, NK, RMRS,etc |
Norminal | Size(mm) | ||
Weight(kg) | A | B | C |
300 | 822 | 525 | 559 |
495 | 1025 | 610 | 650 |
585 | 1102 | 658 | 699 |
675 | 1152 | 690 | 731 |
765 | 1205 | 718 | 764 |
855 | 1250 | 745 | 793 |
970 | 1300 | 775 | 826 |
1080 | 1350 | 805 | 855 |
1200 | 1400 | 835 | 887 |
1440 | 1486 | 885 | 943 |
1710 | 1575 | 940 | 998 |
1980 | 1650 | 985 | 1048 |
2100 | 1686 | 1005 | 1070 |
2655 | 1820 | 1085 | 1155 |
2835 | 1862 | 1109 | 1180 |
3040 | 1896 | 1130 | 1204 |
3550 | 2030 | 1198 | 1287 |
3940 | 2080 | 1240 | 1318 |
4500 | 2170 | 1295 | 1376 |
5610 | 2339 | 1396 | 1483 |
6975 | 2507 | 1496 | 1589 |
7875 | 2610 | 1558 | 1655 |
8325 | 2665 | 1590 | 1689 |
9675 | 2805 | 1674 | 1778 |
10125 | 2850 | 1700 | 1806 |
11025 | 2930 | 1750 | 1859 |
12675 | 3065 | 1812 | 1945 |
13350 | 3132 | 1870 | 1986 |
14100 | 3178 | 1896 | 2015 |
15400 | 3272 | 1954 | 2075 |
16100 | 3320 | 1980 | 2110 |
17250 | 3380 | 2016 | 2142 |
17800 | 3440 | 2050 | 2180 |
18800 | 3500 | 2088 | 2220 |
20000 | 3573 | 2132 | 2265 |
30000 | 4358 | 2588 | 2765 |
40000 | 4794 | 3177 | 3041 |
50000 | 5164 | 3422 | 3276 |
60000 | 5490 | 3639 | 3483 |
70000 | 5778 | 3829 | 3666 |
80000 | 6044 | 4005 | 3835 |
90000 | 6284 | 4164 | 3987 |
100000 | 6506 | 4312 | 4128 |
