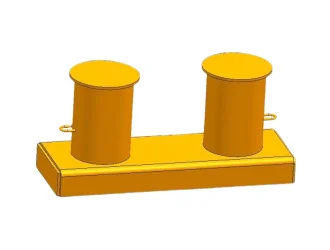

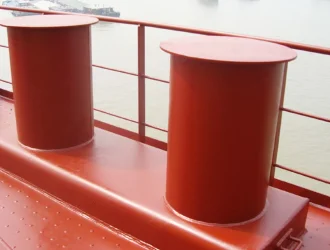

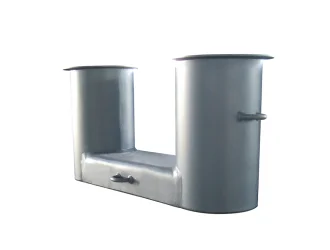

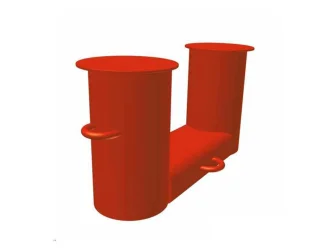

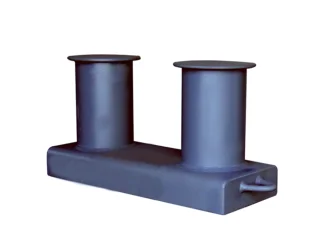

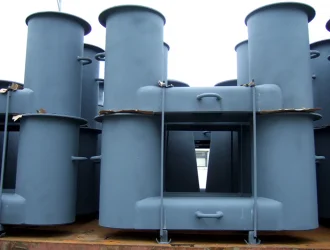

Double Bitt Mooring Bollard Type A
| Product Features: | |
| Application: | Marine deck accessories |
| Material: | Cast steel material |
| Specification: | 50KN-2000KN |
| Treatment: | Anti-rust paint. |
| Standard: | NS2584,ISO13795,ISO90001 |
Description

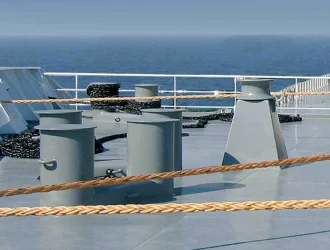

ISO13795 Double Bitt Bollard is also called ISO13795 Deck Bollard, which is a mooring and towing fitting based on ISO standards, designed and manufactured to install on ships for protecting mooring and towing ropes.
ISO13795 Double Bitt Bollard adopts a compact weldable steel plate and steel pipe design, and the yield point is not less than 235N/mm2. Its size ranges from 100mm to 600mm, and weight ranges from 29kg to 1391kg. The surface is coated with an anti-corrosion protective coating. All surfaces (including welding points) have no visible flaws or imperfections, and all surfaces that are in contact with the rope have no surface roughness or irregularity.

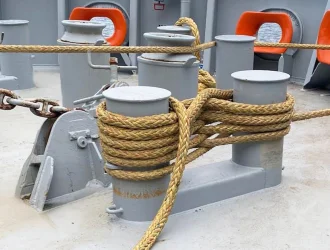

In addition, for the towing purpose, the maximum load on the rope is applied to the tugboat pull, and by using an eye splice at the end of the towing rope connects to the bollard.
As s China leading marine equipment supplier, Sinostar Marine can provide all types of marine bollards. Besides, we can also provide custom bollards according to the customer’s drawings. At the same time, we also offer other types of mooring bollards. All of our bollards have all classification certificates, such as ABS, LR, BV, NK, DNV, RINA, RS, IRS, CCS, etc. If you are interested in our products, please feel free to contact us.

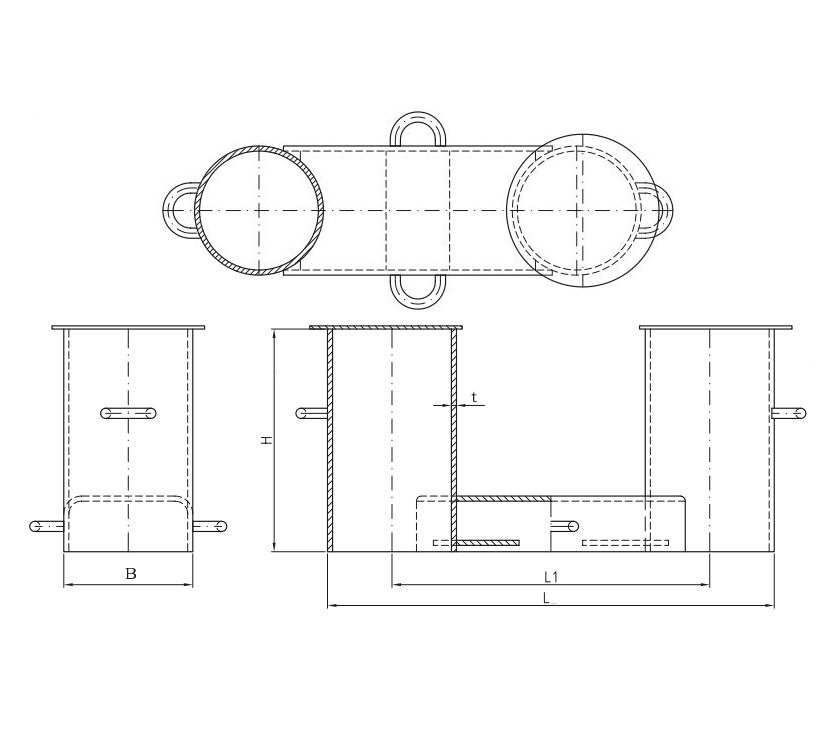

| Dia.(mm) | B(mm) | t(mm) | L(mm) | H(mm) | Weight(kg) |
| 100 | 165 | 10 | 445 | 196 | 19 |
| 125 | 195 | 10 | 540 | 146 | 29 |
| 160 | 225 | 10 | 670 | 316 | 45 |
| 200 | 290 | 10 | 860 | 378 | 80 |
| 250 | 360 | 11 | 1065 | 470 | 141 |
| 315 | 430 | 15 | 1300 | 597 | 264 |
| 355 | 480 | 17 | 1475 | 663 | 358 |
| 400 | 550 | 18 | 1630 | 749 | 499 |
| 450 | 620 | 19 | 1840 | 841 | 680 |
| 500 | 690 | 20 | 2040 | 928 | 911 |
| 560 | 750 | 22 | 2240 | 1025 | 1208 |
| 630 | 820 | 24 | 2510 | 1152 | 1601 |
| 710 | 960 | 25 | 2840 | 1294 | 2252 |
| 800 | 1100 | 26 | 3240 | 1480 | 3071 |
