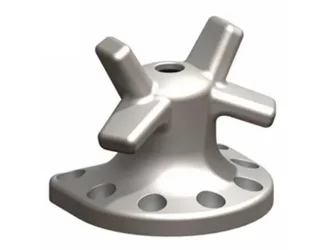

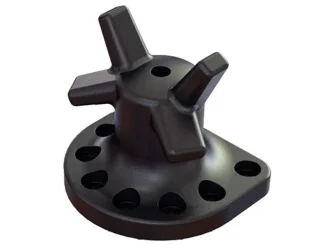

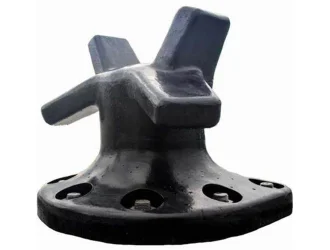

Attributes: | |
Material: | Cast Iron or Cast Steel |
Surface: | Sandblasting then painted epoxy |
Capacity: | 10Ton to 200Ton |
Color: | Colorful Paint |
Customize: | Acceptable |
Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |
Dimensions (mm) | Bolts | Capacity (T) | ||||
A | B | C | D | E | ||
41 | 291 | 348 | 330 | 381 | M24*4 | 10 |
45 | 320 | 394 | 362 | 419 | M24*4 | 15 |
49 | 349 | 430 | 381 | 442 | M24*5 | 20 |
55 | 392 | 483 | 429 | 497 | M30*5 | 30 |
59 | 419 | 516 | 457 | 530 | M36*5 | 50 |
71 | 489 | 627 | 556 | 645 | M42*6 | 75 |
81 | 559 | 717 | 635 | 737 | M42*7 | 100 |
90 | 615 | 788 | 699 | 810 | M48*7 | 125 |
98 | 671 | 860 | 762 | 884 | M48*7 | 150 |
102 | 699 | 896 | 794 | 921 | M56*8 | 200 |
