Anchor Shackle Type D End Shackle Joining Shackle

Product Features:
Application:	Joining shackle and anchor chain
Material:	Alloy steel CM490/CM690
Diameter:	20.5mm to 142mm
Surface finishing:	Black tar or hot dip galvanized
Standard：	European standard/USA ASTM 80
Certificate:	LR, ABS, BV, DNV, CCS, KR, NK, RMRS,etc

Description

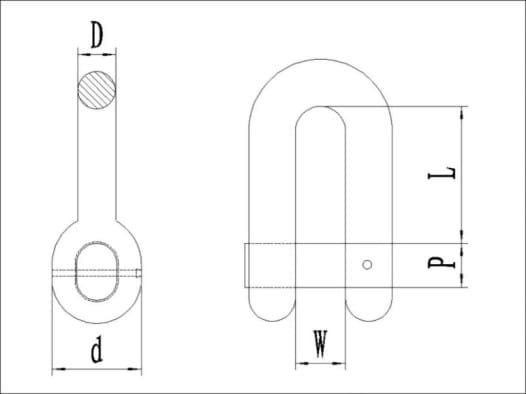

Chain size	Size(mm)					Unit weight
(mm)	D	L	W	d	P	(kg)
20.5	29	94	49	64	37	3.3
24	34	110	57	74	43	5
26	36	120	63	81	46	6
28	39	129	68	87	50	8
30	42	138	72	93	54	9.5
32	45	147	76	99	58	12
34	48	156	81	105	61	14
36	50	166	87	112	65	17
38	53	175	92	118	69	20
40	56	184	96	124	72	23
42	59	193	100	130	76	26
44	62	202	105	136	79	29
46	64	212	111	143	83	33
48	67	221	116	149	86	37
50	70	230	120	155	90	41
52	73	239	124	161	93	45
54	76	248	129	167	97	50
56	78	258	135	174	101	54
58	81	267	140	180	104	65
60	84	276	144	186	108	70
62	87	285	148	192	112	76
64	90	294	153	198	115	82
66	92	304	159	205	119	94
68	95	313	164	211	122	101
70	98	322	168	217	126	108
76	106	350	183	236	137	141
81	113	373	195	251	146	171
87	122	400	208	270	157	218
90	126	414	216	279	162	243
95	133	437	228	295	171	290
100	140	460	240	310	180	335
111	155	511	267	344	199	445
122	171	560	292	378	220	550
127	178	584	304	394	229	600
132	185	607	316	409	238	675
137	192	630	328	425	247	750
142	199	653	340	440	256	900
