Stud Link Anchor Chain AM2 for Marine Ship
Application:Mooring,Marine,Ship
Categories
hot-sale products
-
-
Hot-dip galvanized Studless Fishing Chain Aquaculture
Application: Aquaculture, Fish farm mooring
-
AC-14 HHP Casting Steel Stockless Anchor Marine for Ship
AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
-
Marine ADA Aqua Drag Anchor aquaculture mooring
ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
-
Marine G2130 Shackle Bolt Bow Forged Anchor Shackle
Application:Lifting accessory commonly used in industrial and construction settings.

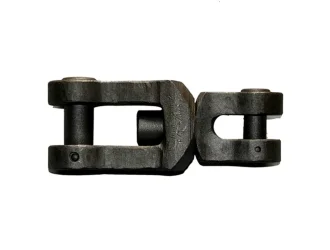

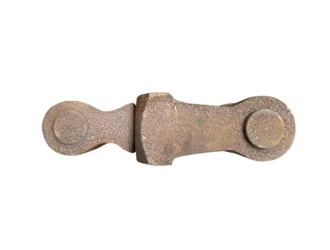

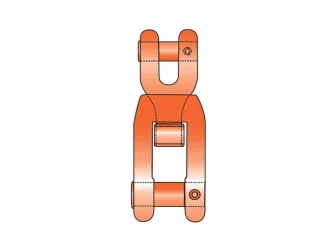

Marine Swivel Shackle Type B Anchor Chain for Ship
| Product Features: | |
| Application: | One type of ship’s swivel shackle |
| Material: | Alloy steel,CM490/CM690 |
| Specification: | 17,5mm up to 107mm |
| Surface: | HDG,Hot dip galvanizing |
| Packing: | Bulk,Ton bag or as customer request,Pallet,Stacked packaging saves space |
| Certification: | IACS,LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |
Description
| Size(mm) | Applicable anchor chain diameter D（mm） | Weight（kg) |
| 48 | 48 | 102 |
| 50 | 50 | 115 |
| 52 | 52 | 130 |
| 54 | 54 | 145 |
| 56 | 56 | 162 |
| 58 | 58 | 180 |
| 60 | 60 | 199 |
| 62 | 62 | 220 |
| 64 | 64 | 242 |
| 66 | 66 | 265 |
| 68 | 68 | 290 |
| 70 | 70 | 317 |
| 73 | 73 | 359 |
| 76 | 76 | 405 |
| 78 | 78 | 438 |
| 81 | 81 | 491 |
| 84 | 84 | 547 |
| 87 | 87 | 608 |
| 90 | 90 | 719 |
| 92 | 92 | 791 |
| 95 | 95 | 791 |
| 97 | 97 | 842 |
| 100 | 100 | 923 |
| 102 | 102 | 980 |
| 105 | 105 | 1069 |
| 107 | 107 | 1131 |
| 111 | 111 | 1262 |
| 114 | 114 | 1368 |
| 117 | 117 | 1478 |
| 120 | 120 | 1595 |
| 122 | 122 | 1676 |
| 124 | 124 | 1760 |
| 127 | 127 | 1891 |
| 130 | 130 | 2028 |
| 132 | 132 | 2123 |
