Buoy Shackle Type B|Sinostar marine equipment Co., Ltd

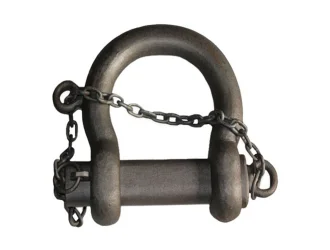

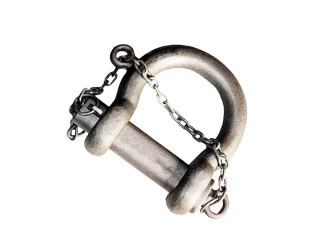

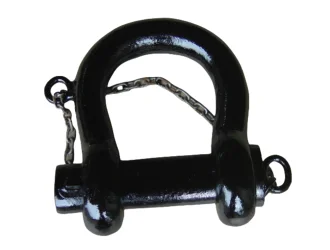

Buoy Shackle Type B for Anchor Chain

Product Features:
Application:	Connect anchor chains with the mooring buoys
Material:	Alloy steel CM490/CM690
Specification:	38mm to 90mm
Surface:	Hot Dip Galvanizing
Certification:	Certificate: LR, ABS, BV, DNV, CCS, KR, NK, RMRS,ETC

Nominal Diameter for Chain d(mm)	A	B	C	D	G	Mass(kg)
38	225	113	375	60	150	26
40	234	118	384	62	150	30
42	243	125	394	63	150	34
44	254	130	401	66	150	39
46	264	136	410	69	150	45
48	275	141	429	72	160	51
50	288	148	440	75	160	57
52	299	153	460	78	170	64
54	313	161	472	81	170	72
56	321	165	491	84	180	80
58	334	172	503	87	180	89
60	345	177	513	90	180	99
62	358	184	525	93	180	109
64	369	189	556	96	200	119
66	379	195	566	99	200	131
68	390	200	576	102	200	143
70	403	207	586	105	200	154
73	421	215	601	109	200	175
76	435	223	615	113	200	197
78	448	230	625	116	200	213
81	468	242	641	119	200	239
84	483	251	655	122	200	268
87	497	259	670	127	200	298
90	513	267	684	130	200	332
