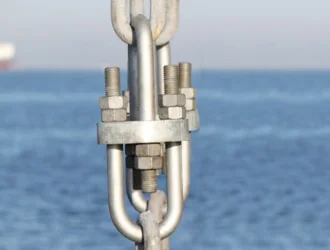

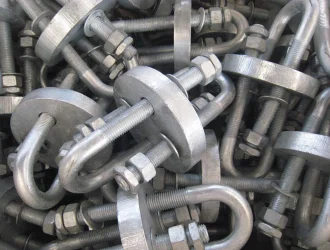

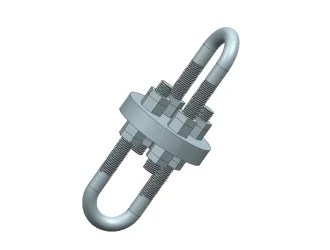

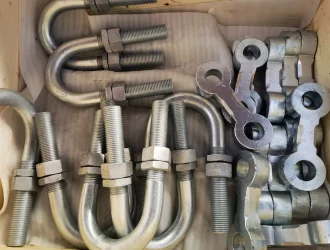

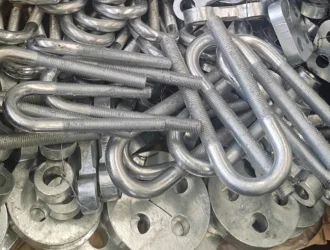

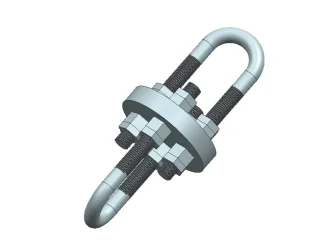

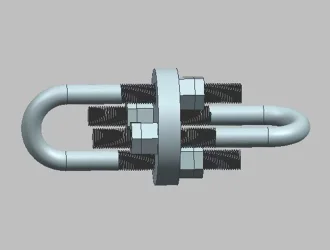

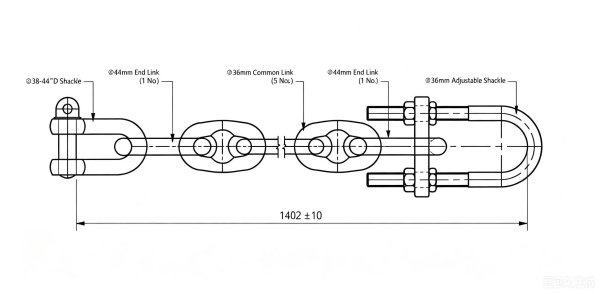

Chain tensioner Dogbone Shackle Double type
| Product Features: | |
| Application: | Industrial, Household, Marine fender, Port fender |
| Material: | Alloy steel |
| Diameter: | 265mm to 74mm |
| Surface finishing: | Hot dip galvanizing |
| Customization: | Available |
Description

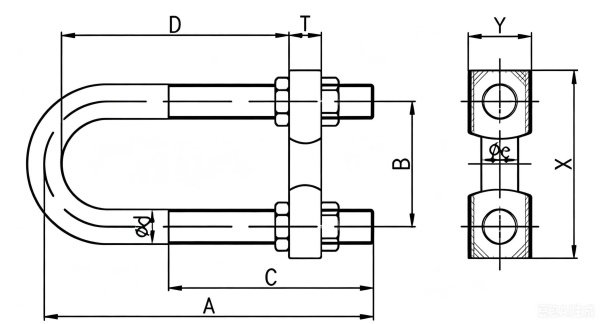

| Model | SIZE(mm) | ||||||
| - | A | B | C | D | T | X | Y |
| M30 | 290 | 110 | 170-220 | 172 | 28 | 165 | 55 |
| M36 | 330 | 125 | 195-260 | 198 | 32 | 195 | 65 |
| M39 | 365 | 140 | 215-280 | 220 | 36 | 215 | 73 |
| M42 | 400 | 150 | 240-310 | 237 | 40 | 230 | 80 |
| M45 | 430 | 160 | 255-335 | 257 | 40 | 250 | 90 |
| M48 | 455 | 170 | 275-355 | 271 | 45 | 265 | 95 |
| M52 | 485 | 185 | 290-375 | 292 | 45 | 285 | 100 |
| M56 | 520 | 195 | 310-410 | 312 | 50 | 300 | 105 |
| M60 | 560 | 210 | 335-440 | 335 | 55 | 325 | 115 |
| M64 | 600 | 225 | 360-470 | 358 | 60 | 345 | 120 |
| M68 | 640 | 245 | 380-500 | 385 | 60 | 365 | 120 |
