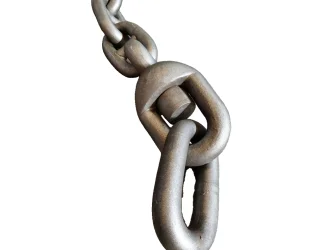

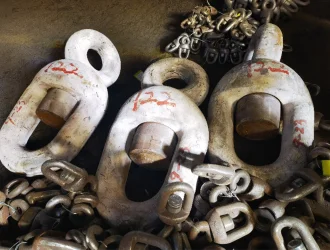

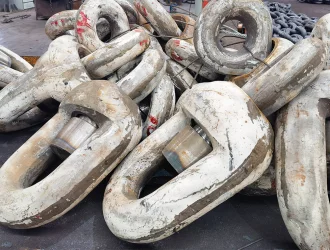

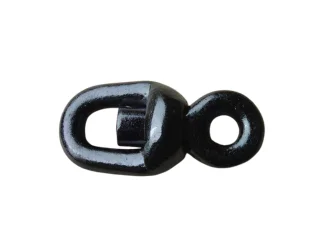

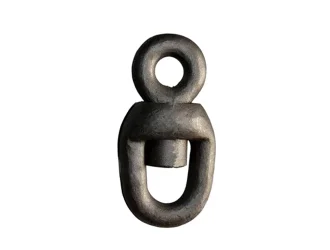

Marine Swivel Anchor Chain in China Factory
| Product Features: | |
| Application: | Swivel for ship |
| Material: | Alloy steel/carbon steel/stainless steel |
| Specification: | 16mm to 162mm |
| Surface: | Black tar/hot-dip galvanized |
| Standard: | ASTM, GB, DIN, ANSI, JIS, ISO |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc |

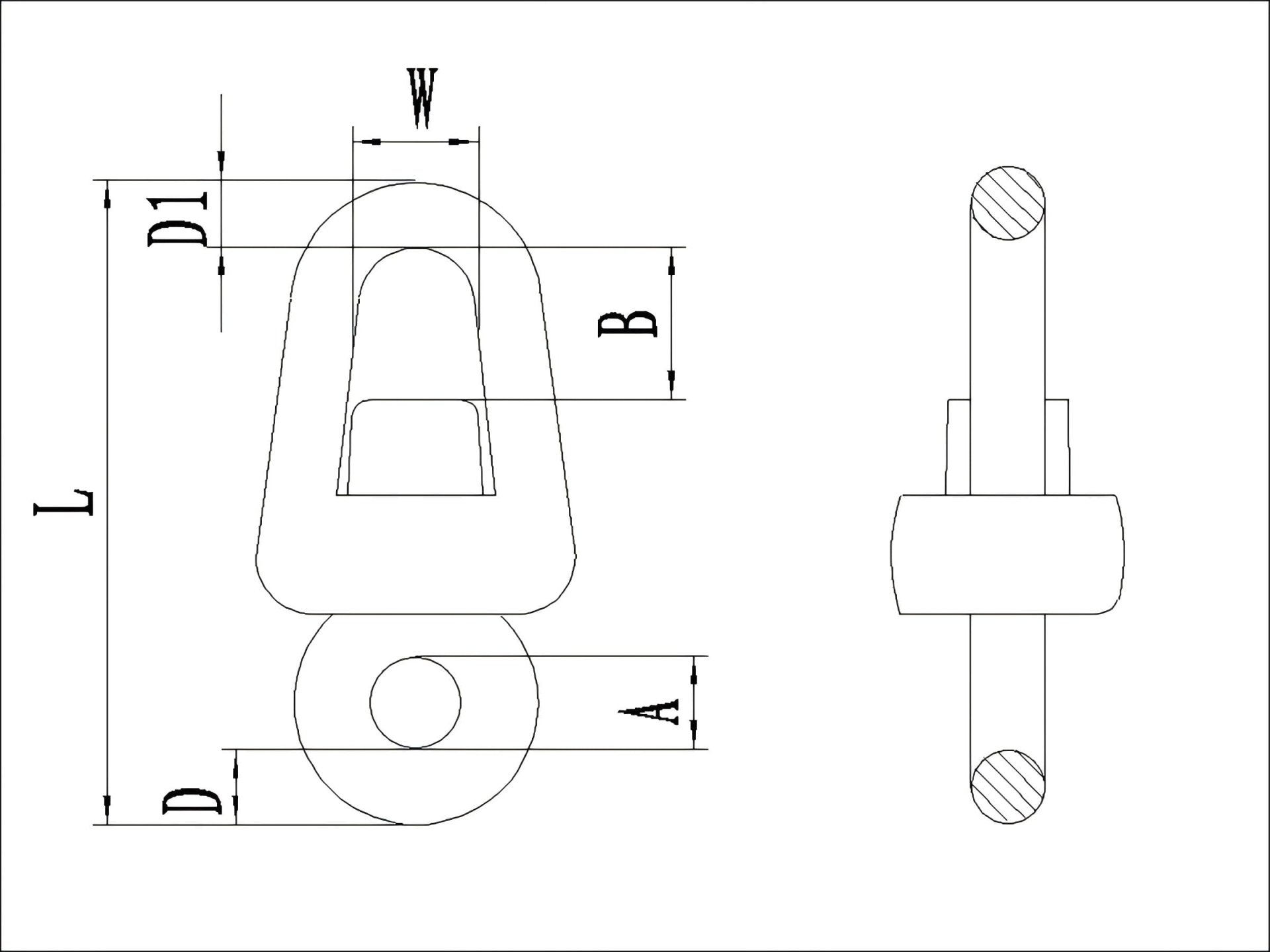

Description
| Nominal | AM2 (KN)(KN) | AM3 (KN) | Weight(kg) | ||
| Size(mm) | BL | PL | BL | PL | - |
| 16 | 150 | 107 | 216 | 150 | 1.34 |
| 17.5 | 179 | 127 | 256 | 179 | 1.73 |
| 19 | 211 | 150 | 301 | 211 | 2.17 |
| 20.5 | 244 | 175 | 349 | 244 | 2.2 |
| 22 | 280 | 200 | 401 | 280 | 3.5 |
| 24 | 332 | 237 | 476 | 332 | 4.53 |
| 26 | 389 | 278 | 556 | 389 | 5.79 |
| 28 | 449 | 321 | 642 | 449 | 7.25 |
| 30 | 514 | 368 | 735 | 514 | 9 |
| 32 | 583 | 417 | 833 | 583 | 10.03 |
| 34 | 655 | 468 | 937 | 655 | 12.75 |
| 36 | 732 | 523 | 1050 | 732 | 14.96 |
| 38 | 812 | 581 | 1160 | 812 | 17.44 |
| 40 | 895 | 640 | 1280 | 895 | 20.25 |
| 42 | 981 | 703 | 1400 | 981 | 25.4 |
| 44 | 1080 | 769 | 1540 | 1080 | 26.6 |
| 46 | 1170 | 837 | 1680 | 1170 | 30.67 |
| 48 | 1270 | 908 | 1810 | 1270 | 35 |
| 50 | 1370 | 981 | 1960 | 1370 | 40.5 |
| 52 | 1480 | 1060 | 2110 | 1480 | 49.5 |
| 54 | 1590 | 1140 | 2270 | 1590 | 50.5 |
| 56 | 1710 | 1220 | 2430 | 1710 | 55 |
| 58 | 1810 | 1290 | 2600 | 1810 | 64.6 |
| 60 | 1940 | 1380 | 2770 | 1940 | 71.3 |
| 62 | 2060 | 1470 | 2940 | 2060 | 77.7 |
| 64 | 2190 | 1560 | 3130 | 2190 | 83.3 |
| 66 | 2310 | 1660 | 3300 | 2310 | 88.7 |
| 68 | 1450 | 1750 | 3500 | 2450 | 100 |
| 70 | 2580 | 1840 | 3690 | 2580 | 107.8 |
| 73 | 2790 | 1990 | 3990 | 2790 | 125.6 |
| 76 | 3010 | 2150 | 4300 | 3010 | 143.8 |
| 78 | 3160 | 2260 | 4500 | 3160 | 154 |
| 81 | 3380 | 2410 | 4820 | 3380 | 188 |
| 84 | 3610 | 2580 | 5160 | 3610 | 198 |
| 87 | 3850 | 2750 | 5500 | 3850 | 215 |
| 90 | 4090 | 2920 | 5840 | 4090 | 238 |
| 92 | 4260 | 3040 | 6080 | 4260 | 252 |
| 95 | 4510 | 3230 | 6440 | 4510 | 269 |
| 97 | 4680 | 3340 | 6690 | 4680 | 301 |
| 100 | 4940 | 3530 | 7060 | 4940 | 330 |
| 102 | 5120 | 3660 | 7320 | 5120 | 344 |
| 105 | 5390 | 3850 | 7700 | 5390 | 387 |
| 107 | 5570 | 3980 | 7960 | 5570 | 428 |
| 111 | 5940 | 4250 | 8480 | 5940 | 448 |
| 114 | 6230 | 4440 | 8890 | 6230 | 460 |
| 117 | 6510 | 4650 | 9300 | 6510 | 475 |
| 120 | 6810 | 4850 | 9720 | 6810 | 547 |
| 122 | 7000 | 5000 | 9990 | 7000 | 649 |
| 124 | 7200 | 5140 | 10280 | 7200 | 680 |
| 127 | 7490 | 5350 | 10710 | 7490 | 729 |
| 130 | 7800 | 5570 | 11140 | 7800 | 784 |
| 132 | 8000 | 5720 | 11420 | 8000 | 820 |
| 137 | 8510 | 6080 | 12160 | 8510 | 812 |
| 142 | 9030 | 6450 | 12910 | 9030 | 1012 |
| 147 | 9560 | 6840 | 13660 | 9560 | 1124 |
| 152 | 10100 | 7220 | 14430 | 10100 | 1238 |
| 157 | 10640 | 7600 | 15200 | 10640 | 1360 |
| 162 | 11180 | 7990 | 15980 | 11180 | 1490 |
