Product Features: | |

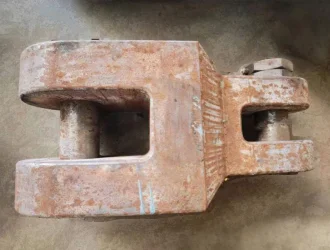

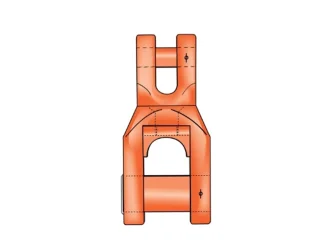

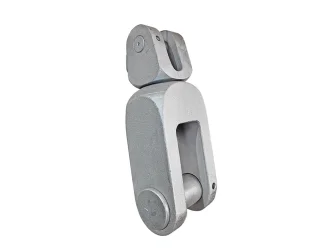

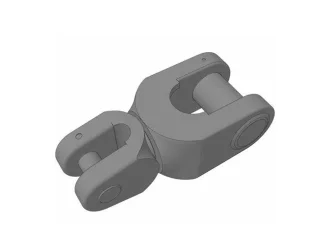

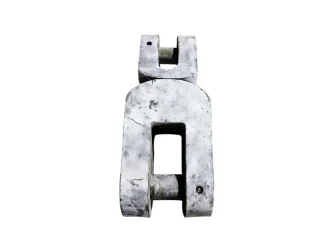

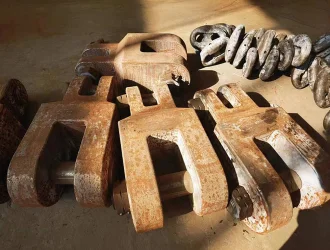

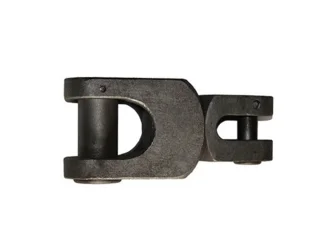

Application: | one type of ship’s swivel shackle |
Material: | Alloy steel,CM490/CM690 |
Specification: | 48mm-132mm |
Surface: | HDG,Hot-dip galvanizing |
Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc |
Size(mm) | Applicable anchor chain diameter D(mm) | Weight(kg) |
48 | 44/46/48 | 160 |
52 | 50/52 | 289 |
56 | 54/56 | 300 |
62 | 58/60/62 | 330 |
68 | 64/66/68 | 458 |
76 | 70/73/76 | 522 |
81 | 78/81 | 815 |
87 | 84/87 | 1007 |
95 | 90/92/95 | 1300 |
102 | 97/100/102 | 1610 |
107 | 105/107 | 1627 |
117 | 111/114/117 | 2032 |
122 | 120/122 | 2336 |
127 | 124/127 | 2636 |
132 | 130/132 | 2960 |
